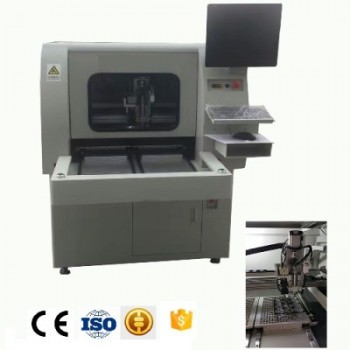

点击图片查看原图这是 款高端精度的SMT激光模板切割机，采用了国外进口长寿命风冷技术的光纤激光器，其光束质量好，发光寿命长，光电转化率高，且无须更换灯管，免维护费，使用风冷技术，大大节约了用电损耗。
This is a high-end precision SMT laser template cutting machine, which adopts the imported long-life air-cooled fiber laser. Its beam quality is good, the luminous life is long, the photoelectric conversion rate is high, and there is no need to replace the lamp tube, and the maintenance fee is free. Using the air cooling technology, the power consumption is greatly saved.
机器规格 Machine specifications：
| 激光器功率 Laser power | YSV-6060 | YSV-6560 |
| 波长 wavelength | 50W/100W/200W | 50W/100W/200W |
| 光束质量 Beam quality | 1070nm | 1070nm |
| 有效切割面积 Effective cutting area | M²<1.1 | M²<1.1 |
| 大夹装钢片尺寸 Maximum clamping steel sheet size | 600mm*600mm | 650mm*650mm |
| 切割厚度 Cutting thickness | 650mm*720mm | 650mm*720mm |
| 外形尺寸 Dimensions | 1640mm*1380mm*1500mm | 1640mm*1380mm*1500mm |
| 设备重量 Equipment weight | 约19200 | 约24000 |
| 定位精度 positioning accuracy | ±2μm | ±2μm |
| 重复定位精度 Repeat positioning accuracy | ±2μm | ±2μm |
